Type 2 (or 3) AC surge protector
DS415-400
Compact 3-phase+N Type 2 surge protector - 230/400 V - Pluggable
DS415-400
Part Number
451402
Discover our latest innovation : the
DAC15C-40-440
Compact 3-phase+N type 2 (or 3) surge protector
In: 5 kA
Imax: 15 kA
Common mode
Pluggable module
Remote signaling option
EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us

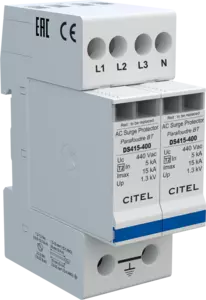

The DS415 Type 2 surge protectors are compact devices designed to protect 3-phase+N networks at the main switchboard. They provide a common or common/differential mode protection. This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS415 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2 (or 3)
Network
230/400 V 3-phase
AC system
IT
Nominal line voltage
Un
400 Vac
Max. AC operating voltage
Uc
440 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
580 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
770 Vac disconnection
Residual Current
Leakage current to Ground
Ipe
< 0.5 mA
Operating current
Continious current at Uc
Ic
0.5 mA
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
15 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc
10 kV
Withstand on overvoltages IEEE C62.41.1
10 kV
Connection mode(s)
L/N and N/PE
Protection mode(s)
Common mode
Residual voltage at 5 kA
@ 5 kA (8/20µs)
Up-5kA
1.3 kV
Protection level CM/DM
@ In (8/20µs)
Up mc/md
1.3 kV
Admissible short-circuit current
Isccr
10 000 A
Technology
MOV
SPD configuration
3-phase+Neutral
Connection to Network
By screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE)
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Outdoor application
No
Failsafe mode
Disconnection from AC network
Disconnection indicator
4 mechanical indicators
Spare module(s)
DSM415-400
Remote signaling of disconnection
Option DS415S-400 : output on changeover contact
Dimensions
See diagram
Weight
0.261 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
20 A min. - 125 A max. - Fuses type gG
×
Description:
Compact 3-phase+N Type 2 surge protector - 230/400 V - Pluggable
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification:
EAC
Technology:
MOV
SPD configuration:
3-phase+Neutral
Remote signaling of disconnection:
Option DS415S-400 : output on changeover contact
SPD type :
2 (or 3)
Network:
230/400 V 3-phase
AC system:
IT
Max. AC operating voltage :
440 Vac
Residual Current :
< 0.5 mA
Max. discharge current :
15 kA
Admissible short-circuit current:
10 000 A
CITEL
Reference:
DS415-400
Part Number:
451402
Or equivalent
