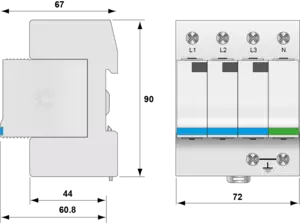

Type 2 (or 3) AC surge protector - 3-phase+N

DS14-230/G
Part Number 471512
DS14-230/G
  • Discover our latest innovation : the DAC15C-31-275
  • Type 2 (or 3) AC Multipolar surge protector
  • In : 5 kA
  • Imax total: 40 kA
  • Pluggable module by phase
  • Remote signaling option
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Contact Us
DS10 type2 AC surge protector are used mainly for primary protection of single and 3- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS10 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Select another reference:
SPD type
IEC

2 (or 3)
Network

230/400 V 3-phase+N
AC system

TT-TNS
Nominal line voltage
 Un

230 Vac
Max. AC operating voltage
Uc

255 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT

335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT

440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
 UT

1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
 Ipe

None
Operating current
Continious current at Uc
 Ic

0.5 mA
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

10 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

40 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc

10 kV
Withstand on overvoltages IEEE C62.41.1

10 kV
Connection mode(s)

L/N and N/PE
Protection mode(s)

Common/Differential mode
Protection level L/N
@ In (8/20µs)
 Up L/N

0.9 kV
Protection level N/PE
@ In (8/20µs)
 Up N/PE

1.5 kV
Admissible short-circuit current
 Isccr

25 000 A
Technology

MOV+GDT
SPD configuration

3-phase+Neutral
Connection to Network

By screw terminals: 2.5-25mm² / by bus
Format

Plug-in modular box
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection from AC network
Disconnection indicator

1 mechanical indicator by pole
Spare module(s)

DSM10-230 + DSM40G-600
Remote signaling of disconnection

option DS14S-230/G : output on changeover contact
Dimensions

See diagram
Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification

UL Recognized
Thermal disconnector

Internal
Installation ground fault breaker

Type 'S' or delayed
Back-up protection device

20 A min. - 125 A max. - Fuses type gG
