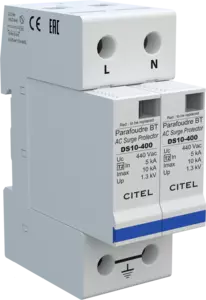

Type 2 (or 3) AC surge protector - Single-phase
DS12-400
Part Number: 471401
- Type 2 (or 3) AC Multipolar surge protector
- In : 5 kA
- Imax total: 20 kA
- Pluggable module by phase
- Remote signaling option
- EN 61643-11, CEI 61643-11, UL1449 ed.3 compliance
Installation Sheet
DS10 type2 AC surge protector are used mainly for primary protection of single and 3- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards.
The DS10 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Select another reference:
| SPD type following IEC test |
2 (ou 3) |
| Network |
230 V single-phase |
| AC system |
IT |
| Nominal line voltage |
400 Vac |
| Max. AC operating voltage L-N |
440 Vac |
| Temporary Over Voltage (TOV) Charasteristics - 5 sec. without disconnection |
580 Vac withstand |
| Temporary Over Voltage (TOV) Charasteristics - 120 mn without disconnection or with safety disconnection |
770 Vac disconnection |
| Residual Current Leakage current to Ground |
< 1 mA |
| Operating current Continious current at Uc |
0.5 mA |
| Follow current |
None |
| Nominal discharge current 15 x 8/20 µs impulses |
5 kA |
| Max. discharge current max. withstand @ 8/20 µs by pole |
10 kA |
| Total Maximal discharge current max. total withstand @ 8/20 µs |
20 kA |
| Withstand on Combinaison waveform IEC 61643-11 Class III test: 1.2/50µs - 8/20µs |
10 kV |
| Withstand on overvoltages IEEE C62.41.1 |
10 kV |
| Admissible short-circuit current |
25000 A |
| Connection mode(s) |
L/PE |
| Protection mode(s) |
Common mode |
| Protection level L/PE @ In (8/20µs) |
1.3 kV |
| Residuel voltage at 5 kA @ 5 kA (8/20µs) |
1.3 kV |
| Technology | MOV |
| SPD configuration | Single phase |
| Connection to Network | By screw terminals: 2.5-25 mm² / by bus |
| Format |
Plug-in modular box |
| Mounting |
Symmetrical rail 35 mm (EN60715) |
| Housing material | Thermoplastic UL94-V0 |
| Operating temperature | -40/+85°C |
| Protection rating | IP20 |
| Failsafe behavior | Disconnection |
| Disconnection indicator | 1 mechanical indicator by pole |
| Spare module(s) |
DSM10-400 |
| Remote signaling of disconnection |
option DS12S-400 : output on changeover contact |
| Dimensions |
See diagram |
| Certification |
EAC |
| Standards compliance |
IEC 61643-11 / EN 61643-11 / UL1449 4ed. |
| Installation ground fault breaker | Type 'S' or delayed |
| Thermal disconnector | Internal |
| Fuses |
Fuses type gG - 20A |
