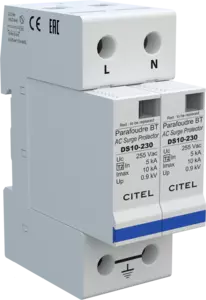

Type 2 (or 3) AC surge protector - Single-phase
DS12-230
DS12-230
Part Number: 471501
  • Type 2 (or 3) AC Multipolar surge protector
  • In : 5 kA
  • Imax total: 20 kA
  • Pluggable module by phase
  • Remote signaling option
  • EN 61643-11, CEI 61643-11, UL1449 ed.3 compliance
Installation Sheet

DS10 type2 AC surge protector are used mainly for primary protection of single and 3- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS10 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.


SPD type 2 (ou 3)
Network 230 V single-phase
AC system TN
Nominal line voltage Un 230 Vac
Max. AC operating voltage L-N Uc 255 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec. UT 335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn UT 440 Vac disconnection
Residual Current Ipe < 1 mA
Operating current Ic 0.5 mA
Follow current If None
Nominal discharge current In 5 kA
Max. discharge current Imax 10 kA
Total Maximal discharge current Imax Total 20 kA
Withstand on Combination waveform IEC 61643-11 Uoc 10 kV
Withstand on overvoltages IEEE C62.41.1 10 kV
Connection mode(s) L/PE and N/PE
Protection mode(s) Common mode
Protection level L/PE Up L/PE 0.9 kV
Admissible short-circuit current Isccr 25000 A
Technology MOV
SPD configuration Single phase
Connection to Network By screw terminals: 2.5-25 mm² / by bus
Format Plug-in modular box
Mounting Symmetrical rail 35 mm (EN60715)
Housing material Thermoplastic UL94-V0
Operating temperature -40/+85°C
Protection rating IP20
Failsafe mode Disconnection
Disconnection indicator 1 mechanical indicator by pole
Spare module(s) DSM10-230
Remote signaling of disconnection option DS12S-230 : output on changeover contact
Dimensions See diagram
Standards compliance IEC 61643-11 / EN 61643-11 / UL1449 4ed.
Certification UL / EAC / TUV
