Type 2 (or 3) AC surge protector - 3-phase+N
DAC15C-31-275
DAC15C-31-275
Part Number: 821620212

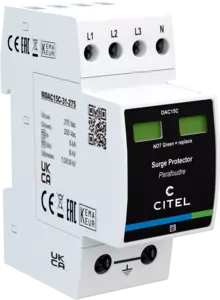

  • Compact 3-phase+N type 2 (or 3) surge protector
  • In : 5 kA
  • Imax : 15 kA
  • Common mode/differential
  • Pluggable module
  • Remote signaling option
  • EN 61643-11, CEI 61643-11, UL1449 ed.3 compliance
Installation Sheet

The pluggable compact surge protectors Type 2 or Type 3 DACC, are designed to protect electrical installation at the main switchboard or at secondary panels..

Their compact format allow to install it in limited space. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. guaranteeing a maximum protection efficiency, an high impulse current capability and a improved reliability.

DACC surge protectors are available in 2 impulse current versions (DAC15C et DAC40C), in multipolar configuration and in several operating voltages to protect all kind of single or 3-phase AC networks.



SPD type
following IEC test
2 (ou 3)
Network
230/400 V
AC system
TT-TN
Max. AC operating voltage L-N
275 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
without disconnection
335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
without disconnection or with safety disconnection
440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
without disconnection or with safety disconnection
1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
None
Follow current
None
Nominal discharge current
15 x 8/20 µs impulses
5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
15 kA
Withstand on Combinaison waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
10 kV
Admissible short-circuit current
10000 A
Protection mode(s)
Common/Differential mode
Protection level CM/DM
@ In (8/20µs)
1.5/0.9 kV
Technology MOV+GDT
SPD configuration 3-phase+Neutral
Connection to Network by screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE)
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN60715)
Housing material Thermoplastic UL94-V0
Operating temperature -40/+85°C
Protection rating IP20
Outdoor application
False
Disconnection indicator 2 mechanical indicators
Spare module(s)
MDAC15C-31-275
Remote signaling of disconnection
Option DAC15CS-31-275 : output on changeover contact
Dimensions
See diagram
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 4ed.
Certification
-
Installation ground fault breaker Type 'S' or delayed
Thermal disconnector Internal
Fuses
Fuses type gG - 20A
