AC Power
Type 2 (or 3) AC surge protector

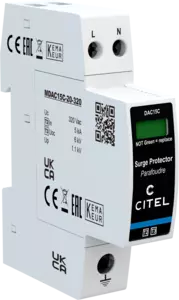

DAC15C-20-320
Compact 1-phase Type 2 (or 3) surge protector - 230 V - Pluggable
DAC15C-20-320
Part Number
821610311
Compact single-phase Type 2 (or 3) surge protector
In: 5 kA
Imax: 15 kA
Commun/Differential mode
Pluggable module
Remote signaling (option)
EN 61643-11, IEC 61643-11 certified
UL1449 ed.5 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
The DAC15C Type 2 or Type 3 Compact plugable surge protectors (SPD) are intended to be connected at the TGBT or divisional panel level. Their compact format allows them to be installed in very small spaces. The DAC15C SPDs are available have a discharge capacity of 15 kA, in single-phase or 3-phase configuration and with various voltages in order to protect any type of networks. Based on varistance technology equipped with disconnector and associated indicator, these SPD ensure maximum protection efficiency, flow capacity and reliability.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2 (or 3)
Network
230/400 V
AC system
TN
Max. AC operating voltage
Uc
320 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
440 Vac disconnection
Residual Current
Leakage current to Ground
Ipe
< 1 mA
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
15 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
30 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc
10 kV
Protection mode(s)
L/PE
Protection level N/PE
@ In (8/20µs)
Up N/PE
1.1 kV
Protection level L/PE
@ In (8/20µs)
Up L/PE
1.1 kV
Admissible short-circuit current
Isccr
10 000 A
Technology
MOV
SPD configuration
Single phase
Connection to Network
By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid)
Format
Plug-in modular box
Plugable
Yes
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator - Red/Green
Spare module(s)
MDAC15C-20-320
Remote signaling of disconnection
Option DAC15CS-20-320: output on changeover contact
Wiring for remote signaling
1.5 mm² max.
Max. Voltage/Current for remote signaling
250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
See diagram - 1TE (EN43880)
Weight
0.128 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
KEMA
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
20 A min. - 125 A max. - Fuses type gG
×
Description:
Compact 1-phase Type 2 (or 3) surge protector - 230 V - Pluggable
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification:
KEMA / EAC
Technology:
MOV
SPD configuration:
Single phase
Remote signaling of disconnection:
Option DAC15CS-20-320: output on changeover contact
SPD type :
2 (or 3)
Network:
230/400 V
AC system:
TN
Max. AC operating voltage :
320 Vac
Residual Current :
< 1 mA
Max. discharge current :
15 kA
Total Maximum discharge current :
30 kA
Admissible short-circuit current:
10 000 A
