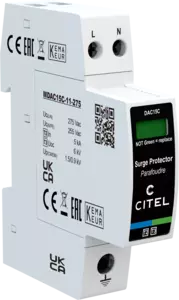

Compact 1-phase Type 2 (or 3) surge protector - 230 V - Pluggable

DAC15C-11-275
Part Number 821620211
DAC15C-11-275
  • Compact single-phase Type 2 (or 3) surge protector
  • In: 5 kA
  • Imax: 15 kA
  • Commun/Differential mode
  • Pluggable module
  • Remote signaling (option)
  • EN 61643-11, IEC 61643-11 certified
  • UL1449 ed.5 compliance
Contact Us
The DAC15C Type 2 or Type 3 Compact plugable surge protectors (SPD) are intended to be connected at the TGBT or divisional panel level. Their compact format allows them to be installed in very small spaces. The DAC15C SPDs are available have a discharge capacity of 15 kA, in single-phase or 3-phase configuration and with various voltages in order to protect any type of networks. Based on varistance technology equipped with disconnector and associated indicator, these SPD ensure maximum protection efficiency, flow capacity and reliability.
Select another reference:
SPD type
2 (or 3)
Network
 230/400 V
AC system
 TT-TN
Max. AC operating voltage
Uc 275 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
 UT 1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
 Ipe None
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 5 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 15 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 30 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc 10 kV
Protection level L/N
@ In (8/20µs)
 Up L/N 0.9 kV
Protection level N/PE
@ In (8/20µs)
 Up N/PE 1.5 kV
Admissible short-circuit current
 Isccr 10 000 A
Technology
 MOV+GDT
SPD configuration
 Single phase
Connection to Network
 By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid)
Format
 Plug-in modular box
Plugable
 Yes
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator - Red/Green
Spare module(s)
 MDAC15C-11-275
Remote signaling of disconnection
 Option DAC15CS-11-275 : output on changeover contact
Wiring for remote signaling
 1.5 mm² max.
Max. Voltage/Current for remote signaling
 250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
 See diagram - 1TE (EN43880)
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 KEMA
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
20 A min. - 125 A max. - Fuses type gG
