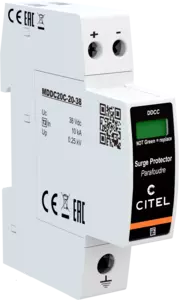

DC power surge protector Type 2 - 24 Vdc

DDC20C-20-38
Part Number 828210411
DDC20C-20-38
  • Type 2 DC power surge protector
  • Compact design
  • Imax: 20 kA
  • Pluggable module
  • Remote signaling (option)
  • Low Up protection level
  • Compliance prIEC 61643-41 and UL1449 ed.5

The technology based on high energy varistor equipped with thermal disconnection mechanism offers protection efficiency and and a maximal reliability. High-energy varistor technology combined with disconnectors, provides maximum protection efficiency and reliability. The Type 2 DDCC version is particularly compact and available for voltages from 12 to 350 Vdc.

Select another reference:

SPD type
IEC

2

Network

DC network 24Vdc

Nominal PV voltage
Uocstc

24 Vdc

Max. AC operating voltage
Uc

30 Vac

Max. PV operating voltage
Ucpv

38 Vdc

Max. DC operating voltage
Uc

38 Vdc

Max. load current @25°C
IL

20 A

Residual Current
Leakage current to Ground
Ipe

< 0.2 mA

PV Permanent Operating current
Current consumption at Ucpv
Icpv

< 0.1 mA

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

10 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

20 kA

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

40 kA

Current withstand short circuit PV
Iscpv

1000 A

Connection mode(s)

+/-/PE

Protection level +/PE (-/PE)
@ In (8/20µs)
Up

250 V

Network type

DC

Technology

MOV

Connection to Network

By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground)

Format

Plug-in modular box

Plugable

Yes

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Outdoor application

No

Failsafe mode

Disconnection from DC network

Disconnection indicator

1 mechanical indicator - Red/Green

Spare module(s)

MDDC20C-20-38

Remote signaling of disconnection

Option DDC20CS-20-38 : output on changeover contact

Dimensions

See diagram - 1TE (EN43880)

Weight

0.100 kg

Standards compliance

prIEC 61643-41 and UL1449 ed.5

Thermal disconnector

Internal

Back-up protection device

20 A min. - 125 A max. - Fuses type gG
