Type 2 AC surge protector - 3-phase
DS74R-230/G
Part Number: 491512
- Re-inforced Type 2 AC surge protector
- In : 30 kA
- Imax : 70 kA
- Pluggable module by phase
- Remote signaling option
- IEC 61643-11, EN 61643-11 compliance
- UL1449 ed.4 approved
Installation Sheet
DS70R type 2 AC surge protector are used mainly for primary protection of single and three-phase networks at the main electrical panel. They provide common-mode protection and are available in one-phase, single-phase, 3-phase and 3-phase+Neutral. This SPD is based on association of high energy varistors equipped with thermal disconnector and failure indicator, to comply with standards.
The DS70R surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+N AC networks. Each pole of the SPD is connected between Line(s) and PE and Neutral and PE.
Select another reference:
| SPD type following IEC test |
2 |
| Network |
230/400 V 3-phase+N |
| AC system |
TT-TNS |
| Nominal line voltage |
230 Vac |
| Max. AC operating voltage L-N |
255 Vac |
| Temporary Over Voltage (TOV) Charasteristics - 5 sec. without disconnection |
335 Vac withstand |
| Temporary Over Voltage (TOV) Charasteristics - 120 mn without disconnection or with safety disconnection |
440 Vac disconnection |
| Temporary Over Voltage N/PE (TOV HT) without disconnection or with safety disconnection |
1200 V/300A/200 ms withstand |
| Residual Current Leakage current to Ground |
None |
| Operating current Continious current at Uc |
< 1 mA |
| Follow current |
None |
| Nominal discharge current 15 x 8/20 µs impulses |
30 kA |
| Max. discharge current max. withstand @ 8/20 µs by pole |
70 kA |
| Total Maximal discharge current max. total withstand @ 8/20 µs |
70 kA |
| Admissible short-circuit current |
25000 A |
| Connection mode(s) |
L/N and N/PE |
| Protection mode(s) |
Common/Differential mode |
| Protection level L/N @ In (8/20µs) |
1.4 kV |
| Protection level N/PE @ In (8/20µs) |
1.5 kV |
| Residual voltage at 10 kA @ 8/20µs |
1 kV |
| Residuel voltage at 5 kA @ 5 kA (8/20µs) |
0.9 kV |
| Technology | MOV |
| SPD configuration | 3-phase+Neutral |
| Connection to Network | By screw terminals: 2.5-25 mm² / by bus |
| Format |
Plug-in modular box |
| Mounting |
Symmetrical rail 35 mm (EN60715) |
| Housing material | Thermoplastic UL94-V2 |
| Operating temperature | -40/+85°C |
| Protection rating | IP20 |
| Failsafe behavior | Disconnection |
| Disconnection indicator | 2 mechanical indicators by pole |
| Spare module(s) |
DSM70R-230 + DSM70G-600 |
| Remote signaling of disconnection |
option DS74RS-230/G : output on changeover contact |

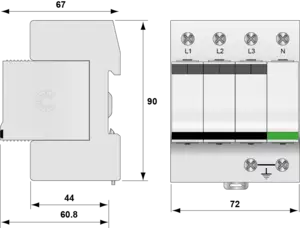

| Dimensions |
See diagram |
| Certification |
EAC |
| Standards compliance |
IEC 61643-11 / EN 61643-11 / UL1449 4ed. |
| Thermal disconnector | Internal |
| Fuses |
Fuses Type gG - 100 A |
| Installation ground fault breaker | Type 'S' or delayed |
