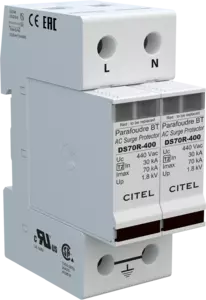

Type 2 AC surge protector - Single-phase
Part Number: 491401
DS72R-400
- Discover our latest innovation : the DAC80-20-440
- Re-inforced Type 2 AC Multipolar surge protector
- In: 30 kA
- Imax total: 140 kA
- Pluggable module by phase
- Remote signaling option
- IEC 61643-11, EN 61643-11 compliance
- UL1449 ed.5 approved
DS70R type 2 AC surge protector are used mainly for primary protection of single and three-phase networks at the main electrical panel.
They provide common-mode protection and are available in one-phase, single-phase, 3-phase and 3-phase+Neutral.
This SPD is based on association of high energy varistors equipped with thermal disconnector and failure indicator, to comply with standards.
The DS70R surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+N AC networks. Each pole of the SPD is connected between Line(s) and PE and Neutral and PE.
Certificates
Datasheet
|
SPD type
|
IEC | 2 |
|
Network
|
230 V single-phase |
|
|
AC system
|
IT |
|
|
Nominal line voltage
|
Un | 400 Vac |
|
Max. AC operating voltage
|
Uc | 440 Vac |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 580 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 770 Vac disconnection |
|
Residual Current
Leakage current to Ground
|
Ipe | < 2 mA |
|
Operating current
Continious current at Uc
|
Ic | < 1 mA |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 30 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 70 kA |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 140 kA |
|
Connection mode(s)
|
L/PE and N/PE |
|
|
Protection mode(s)
|
Common mode |
|
|
Residual voltage at 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 1.2 kV |
|
Protection level N/PE
@ In (8/20µs)
|
Up N/PE | 1.8 kV |
|
Protection level L/PE
@ In (8/20µs)
|
Up L/PE | 1.8 kV |
|
Residual voltage at 10 kA
@ 8/20µs
|
Up-10kA | 1.4 kV |
|
Admissible short-circuit current
|
Isccr | 25 000 A |
|
Technology
|
MOV |
|
|
SPD configuration
|
Single phase |
|
|
Connection to Network
|
By screw terminals: 2.5-25mm² / by bus |
|
|
Format
|
Plug-in modular box |
|
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Failsafe mode
|
Disconnection from AC network |
|
|
Disconnection indicator
|
2 mechanical indicators by pole |
|
|
Spare module(s)
|
DSM70R-400 |
|
|
Remote signaling of disconnection
|
option DS72RS-400 : output on changeover contact |
|
|
Dimensions
|
See diagram |
|
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 |
|
|
Certification
|
CSA / UL |
|
Thermal disconnector
|
Internal |
|
|
Installation ground fault breaker
|
Type 'S' or delayed |
|
|
Back-up protection device
|
100 A min. - 125 A max. - Fuses type gG |
