Type 2+3 AC surge protector - 3-phase+N

DS44VG-120/G
Part Number 461662
DS44VG-120/G
  • Discover our latest innovation : the DAC50VG-31-150
  • Type 2 + 3 AC Multipolar surge protector
  • In : 20 kA
  • Imax total: 100 kA
  • Pluggable module
  • Follow and operating current : none
  • No ageing
  • Optional remote signaling state
  • Optimized to TOV
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance

DS40VG Type 2 +3 AC surge protector, using CITEL's 'VG technology', to completely eliminate the leakAge and operation current while providing maximum discharge capacity and an optimized level of protection. The electric scheme includes a disconnector and its associated indicator .. The DS40VG surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+N AC networks.

Select another reference:

SPD type
IEC

2+3

Network

120/208 V 3-phase+N

AC system

TT-TNS

Nominal line voltage
Un

120 Vac

Max. AC operating voltage
Uc

150 Vac

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

180 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

230 Vac withstand

Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT

1200 V/300A/200 ms withstand

Residual Current
Leakage current to Ground
Ipe

None

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

20 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

40 kA

Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

100 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

6 kV

Withstand on overvoltages IEEE C62.41.1

20 kV

Connection mode(s)

L/N and N/PE

Protection mode(s)

Common/Differential mode

Residual voltage
@ In (8/20 µs)
Up-in

0.6 kV

Protection level L/N
@ In (8/20µs)
Up L/N

1.25 kV

Protection level N/PE
@ In (8/20µs)
Up N/PE

1.5 kV

Admissible short-circuit current
Isccr

25 000 A

Technology

VG Technology (MOV+GSG)

SPD configuration

3-phase+Neutral

Connection to Network

By screw terminals: 2.5-25mm² / by bus

Format

Plug-in modular box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Failsafe mode

Disconnection from AC network

Disconnection indicator

1 mechanical indicator by pole

Spare module(s)

DSM40VG-120+DSM80G-600

Remote signaling of disconnection

option DS44VGS-120/G : output on changeover contact

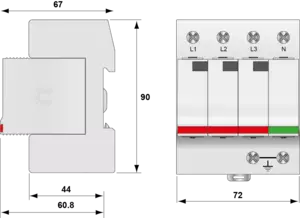

Dimensions

See diagram

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Certification

UL Recognized

Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

50 A min. - 125 A max. - Fuses Type gG
