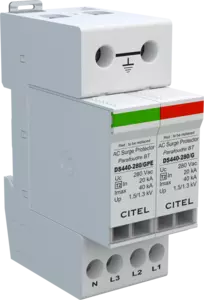

Compact 3-phase+N Type 2 surge protector - 230/400 V - Pluggable with 'PE' at the top
DS440-280/G/ENZ
Part Number: 31112274
- Compact 3-Phase Type 2 surge protector
- In : 20 kA
- Imax : 40 kA
- Common/Differential mode
- Pluggable module
- Remode Signaling contact option
- EN 61643-11, CEI 61643-11 compliance
Installation Sheet
The DS440 Type 2 surge protectors are compact devices designed to protect 3-phase+N networks at the main switchboard. They provide a common or common/differential mode protection.
This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS440 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance.
Select another reference:
| SPD type following IEC test |
2 |
| Network |
230/400 V 3-phase |
| AC system |
TT-TN |
| Nominal line voltage |
230 Vac |
| Max. AC operating voltage L-N |
280 Vac |
| Temporary Over Voltage (TOV) Charasteristics - 5 sec. without disconnection |
335 Vac withstand |
| Temporary Over Voltage (TOV) Charasteristics - 120 mn without disconnection or with safety disconnection |
440 Vac disconnection |
| Temporary Over Voltage N/PE (TOV HT) without disconnection or with safety disconnection |
1200 V/300A/200 ms withstand |
| Operating current Continious current at Uc |
None |
| Follow current |
None |
| Nominal discharge current 15 x 8/20 µs impulses |
20 kA |
| Max. discharge current max. withstand @ 8/20 µs by pole |
40 kA |
| Admissible short-circuit current |
10000 A |
| Connection mode(s) |
L/N and N/PE |
| Protection mode(s) |
Common/Differential mode |
| Protection level CM/DM @ In (8/20µs) |
1.5/1.3 kV |
| Residuel voltage at 5 kA @ 5 kA (8/20µs) |
1.5/0.9 kV |
| Technology | MOV |
| SPD configuration | 3-phase+Neutral |
| Connection to Network | by screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE) |
| Format |
Plug-in modular box |
| Mounting |
Symmetrical rail 35 mm (EN60715) |
| Housing material | Thermoplastic UL94-V0 |
| Operating temperature | -40/+85°C |
| Protection rating | IP20 |
| Outdoor application |
False |
| Failsafe behavior | Disconnection |
| Disconnection indicator | 3 mechanical indicators |
| Spare module(s) |
DSM440-280/G and DSM440-280/GPE |
| Remote signaling of disconnection |
Option DS440S-280/G/ENZ : output on changeover contact |
| Dimensions |
See diagram |
| Standards compliance |
IEC 61643-11 / EN 61643-11 |
| Certification |
EAC |
| Installation ground fault breaker | Type 'S' or delayed |
| Thermal disconnector | Internal |
| Fuses |
Fuses type gG - 50 A |
