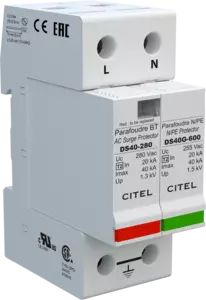

Type 2 AC surge protector - Single-phase
DS42-280/G
Part Number: 461111
- Type 2 AC Multipolar surge protector
- In : 20 kA
- Imax total : 40 kA
- Pluggable module for each phase
- Remote signaling option
- NF EN 61643-11, CEI 61643-11 compliance
- UL1449 ed.17
Installation Sheet
used mainly for primary protection of single and 3- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards.
The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Select another reference:
- DS41-1000
- DS41-120
- DS41-230
- DS41-280
- DS41-320
- DS41-385
- DS41-400
- DS41-600
- DS41-690
- DS42-120
- DS42-120/G
- DS42-230
- DS42-230/G
- DS42-280
- DS42-280/G
- DS42-320
- DS42-320/G
- DS42-385/G
- DS42-400
- DS43-120
- DS43-230
- DS43-280
- DS43-320
- DS43-385
- DS43-400
- DS43-480
- DS44-120
- DS44-120/G
- DS44-230
- DS44-230/G
- DS44-230/G/DE
- DS44-280
- DS44-280/G
- DS44-320
- DS44-320/G
- DS44-385
- DS44-385/G
- DS44-400
- DS44-480
| SPD type following IEC test |
2 |
| Network |
230 V single-phase |
| AC system |
TT-TN |
| Nominal line voltage |
230 Vac |
| Max. AC operating voltage L-N |
280 Vac |
| Temporary Over Voltage (TOV) Charasteristics - 5 sec. without disconnection |
335 Vac withstand |
| Temporary Over Voltage (TOV) Charasteristics - 120 mn without disconnection or with safety disconnection |
440 Vac disconnection |
| Temporary Over Voltage N/PE (TOV HT) without disconnection or with safety disconnection |
1200 V/300A/200 ms withstand |
| Residual Current Leakage current to Ground |
None |
| Operating current Continious current at Uc |
0.5 mA |
| Follow current |
None |
| Nominal discharge current 15 x 8/20 µs impulses |
20 kA |
| Max. discharge current max. withstand @ 8/20 µs by pole |
40 kA |
| Total Maximal discharge current max. total withstand @ 8/20 µs |
40 kA |
| Admissible short-circuit current |
25000 A |
| Connection mode(s) |
L/N and N/PE |
| Protection mode(s) |
Common/Differential mode |
| Protection level L/N @ In (8/20µs) |
1.3 kV |
| Protection level N/PE @ In (8/20µs) |
1.5 kV |
| Residual voltage at 10 kA @ 8/20µs |
1.1 kV |
| Residuel voltage at 5 kA @ 5 kA (8/20µs) |
0.9 kV |
| Technology | MOV+GDT |
| SPD configuration | Single phase |
| Connection to Network | By screw terminals: 2.5-25 mm² / by bus |
| Format |
Plug-in modular box |
| Mounting |
Symmetrical rail 35 mm (EN60715) |
| Housing material | Thermoplastic UL94-V0 |
| Operating temperature | -40/+85°C |
| Protection rating | IP20 |
| Failsafe behavior | Disconnection |
| Disconnection indicator | 1 mechanical indicator by pole |
| Spare module(s) |
DSM40-280+DSM40G-600 |
| Remote signaling of disconnection |
option DS42S-280/G : output on changeover contact |
| Dimensions |
See diagram |
| Certification |
UL / CSA /EAC |
| Standards compliance |
IEC 61643-11 / EN 61643-11 / UL1449 4ed. |
| Installation ground fault breaker | Type 'S' or delayed |
| Thermal disconnector | Internal |
| Fuses |
Fuses type gG - 50 A |
