Type 2 AC surge protector
DS41-230

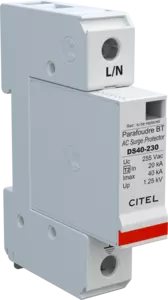

Type 2 AC surge protector - 1-pole - pluggable
DS41-230
Part Number:
3317011
Type 2 AC surge protector
In : 20 kA
Imax : 40 kA
Pluggable module for each phase
Remote signaling option
NF EN 61643-11, CEI 61643-11 compliance
UL1449 ed.4
CITEL_Certif_TUV_DS4x-230.pdf
ULCertificate_DS41-230%.pdf
Installation Sheet
Contact Us
used mainly for primary protection of single and 4- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards. The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2
Network
230/400 V
Nominal line voltage
Un
230 Vac
Max. AC operating voltage
Uc
255 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
UT
335 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
UT
440 Vac disconnection
Residual Current
Ipe
< 0.5 mA
Operating current
Ic
0.5 mA
Follow current
If
None
Nominal discharge current
In
20 kA
Max. discharge current
Imax
40 kA
Connection mode(s)
L/N or N/PE
Protection mode(s)
Common Mode or Differential Mode
Protection level
Up
1.25 kV
Residuel voltage at 5 kA
Up-5kA
0.9 kV
Residual voltage at 10 kA
Up-10kA
1.1 kV
Admissible short-circuit current
Isccr
25 000 A
Technology
MOV
SPD configuration
1-pole
Connection to Network
By screw terminals: 2.5-25mm² / by bus
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator
Spare module(s)
DSM40-230
Remote signaling of disconnection
option DS41S-230 : output on changeover contact
Dimensions
See diagram
Weight
0.099 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.4
Certification
UL / CSA /EAC / TUV
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Fuses
Fuses type gG - 50 A
