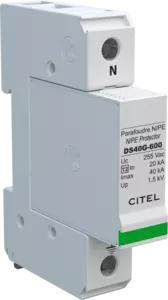

Type 2 N/PE surge protector
Part Number: 381813
DS40G-600
- Discover our latest innovation : the DAC50G-10-440
- Type 2 AC Multipolar surge protector
- In : 20 kA
- Imax total : 40 kA
- Pluggable module for each phase
- Remote signaling option
- EN 61643-11, IEC 61643-11 compliance
- UL1449 ed.5
used mainly for primary protection of single and 4- phase networks at the main electrical panel.
They provide common-mode or common and differential mode.
This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards.
The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Datasheet
|
SPD type
|
IEC | 2 |
|
Network
|
230/400 V |
|
|
Max. AC operating voltage
|
Uc | 255 Vac |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 335 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 440 Vac withstand |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
Follow current
|
If | Yes |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 40 kA |
|
Protection level
@ In (8/20µs)
|
Up | 1.5 kV |
|
Admissible short-circuit current
|
Isccr | 25 000 A |
|
Technology
|
Gas discharge tube |
|
|
Connection to Network
|
By screw terminals: 4-25mm² / by bus |
|
|
Format
|
Plug-in modular box |
|
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Failsafe mode
|
Disconnection from AC network |
|
|
Spare module(s)
|
DSM40G-600 |
|
|
Dimensions
|
See diagram |
|
Standards compliance
|
IEC 61643-11 / EN 61643-11 / UL1449 ed.5 |
|
|
Certification
|
cRUus |
|
|
Environmental standards
|
EU RoHS |
|
Thermal disconnector
|
Internal |
|
|
Installation ground fault breaker
|
Type 'S' or delayed |
|
|
Back-up protection device
|
Fuses type gG - 50 A |
