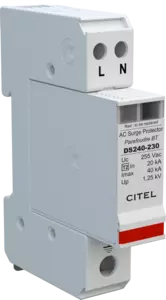

Compact 1-phase Type 2 (or 3) surge protector - 230 V - Pluggable

DS240-230
Part Number 311701
DS240-230
  • Discover our latest innovation : the DAC40C-20-275
  • Compact single-phase Type 2 surge protector
  • In : 20 kA
  • Imax : 40 kA
  • Common mode
  • Pluggable module
  • Remote signaling option
  • EN 61643-11, IEC 61643-11 compliance
  • UL1449 ed.5
Contact Us
The DS240 Type 2 surge protectors are compact devices designed to protect single phase networks at the main switchboard. They provide a common or common/differential mode protection. This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS240 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance.
Select another reference:
SPD type
2
Network
 230 V single-phase
AC system
 TN
Nominal line voltage
 Un 230 Vac
Max. AC operating voltage
Uc 255 Vac
Max. load current
if series connection
 IL 20 A
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe < 0.5 mA
Operating current
Continious current at Uc
 Ic 0.5 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 80 kA
Connection mode(s)
 L/PE and N/PE
Protection mode(s)
 Common mode
Residual voltage at 5 kA
@ 5 kA (8/20µs)
 Up-5kA 0.9 kV
Protection level CM/DM
@ In (8/20µs)
Up mc/md 1.25 kV
Admissible short-circuit current
 Isccr 10 000 A
Technology
 MOV
SPD configuration
 Single phase
Connection to Network
 By screw terminals: 1.5-10mm² (L/N) or 2.5-25mm² (PE)
Format
 Plug-in modular box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 2 mechanical indicators
Spare module(s)
 DSM240-230
Remote signaling of disconnection
 Option DS240S-230 : output on changeover contact
Dimensions
 See diagram
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 CSA / UL
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
50 A min. - 125 A max. - Fuses Type gG
