Type 2 AC surge protector
DACF25-11-150

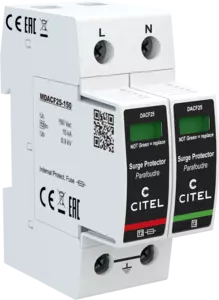

Type 2 AC surge protector with integrated fuse - Single-phase
DACF25-11-150
Part Number
821410132
Type 2 AC Multipolar surge protector
In : 15 kA
Imax total : 50 kA
Internal Fuse
Pluggable module for each phase
Remote signaling option
NF EN 61643-11, IEC 61643-11 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
Type 2 DACF25 SPDs are used mainly for primary surge protection of single and 3-phase AC networks at the main switchboard. In addition to their thermal disconnector, the range is equipped with an internal fuse against short-circuit currents, which avoids the use of an external fuse or circuit-breaker as requested by standard. The operation of one of the both disconnectors will activate the indicator and the remote signalling (option). This compact solution simplifies the implementation and minimum space. The DACF25 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2
Network
120 V single-phase
AC system
TT-TN
Max. AC operating voltage
Uc
150 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
180 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
230 Vac disconnection
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT
1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
Ipe
None
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
15 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
25 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
50 kA
Connection mode(s)
L/N and N/PE
Protection level L/N
@ In (8/20µs)
Up L/N
0.9 kV
Protection level N/PE
@ In (8/20µs)
Up N/PE
1.5 kV
Residual voltage L/N at 5 kA
@ 5 kA (8/20µs)
Up-5kA
0.6 kV
Protection level N/PE at 5 kA
@ 5 kA (8/20µs)
Up-5kA
0.6 kV
Admissible short-circuit current
Isccr
100 000 A
Technology
MOV+GDT
SPD configuration
Single phase
Connection to Network
By screw terminals: 2.5-25mm² (35mm² rigid)
Format
Plug-in modular box
Plugable
Yes
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator by pole - Red/Green
Spare module(s)
MDACF25-150 + MDAC50G-255/F25
Remote signaling of disconnection
option DACF25S-11-150 : output on changeover contact
Wiring for remote signaling
1.5 mm² max.
Max. Voltage/Current for remote signaling
250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
See diagram - 2TE (EN43880)
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
internal (equivalent AC rating : 40 A, gG Type)
Integrated fuses
Yes
×
Description:
Type 2 AC surge protector with integrated fuse - Single-phase
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Technology:
MOV+GDT
SPD configuration:
Single phase
Remote signaling of disconnection:
option DACF25S-11-150 : output on changeover contact
SPD type :
2
Network:
120 V single-phase
AC system:
TT-TN
Max. AC operating voltage :
150 Vac
Residual Current :
None
Max. discharge current :
25 kA
Total Maximum discharge current :
50 kA
Admissible short-circuit current:
100 000 A
Integrated fuses:
Yes
