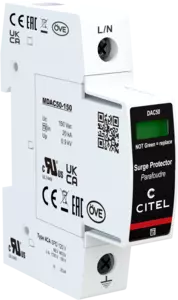

Type 2 AC surge protector - 1-pole - pluggable
Part Number: 821110111
DAC50-10-150
- Type 2 AC multipolar surge protector
- In: 20 kA
- Imax: 50 kA
- Pluggable module for each phase
- Remote signaling option
- EN 61643-11, IEC 61643-11 certified
The pluggable surge protectors Type 2 DAC50, are designed to protect AC powerline at the main switchboard of the installation.
These SPDs are based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards and to provide a maximum protection efficiency, a high impulse current capability and an improved reliability.
The surge protectors DAC50 are available in multipolar version and in several voltages to protect single or 3-phase networks.
Certificates
Datasheet
CCA
|
SPD type
|
IEC | 2 |
|
Network
|
230/400 V 3-phase |
|
|
AC system
|
TNC |
|
|
Nominal line voltage
|
Un | 230 Vac |
|
Max. AC operating voltage
|
Uc | 150 Vac |
|
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
|
UT | 180 Vac withstand |
|
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
|
UT | 230 Vac disconnection |
|
Residual Current
Leakage current to Ground
|
Ipe | < 1 mA |
|
Operating current
Continious current at Uc
|
Ic | 0.5 mA |
|
Follow current
|
If | None |
|
Nominal discharge current
15 x 8/20 µs impulses
|
In | 20 kA |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 50 kA |
|
Connection mode(s)
|
L/PE |
|
|
Protection level
@ In (8/20µs)
|
Up | 0.9 kV |
|
Residual voltage at 5 kA
@ 5 kA (8/20µs)
|
Up-5kA | 0.6 kV |
|
Protection level L/PE
@ In (8/20µs)
|
Up L/PE | 1.25 kV |
|
Residual voltage at 10 kA
@ 8/20µs
|
Up-10kA | 1.1 kV |
|
Admissible short-circuit current
|
Isccr | 50 000 A |
|
Network type
|
AC |
|
|
Technology
|
MOV |
|
|
SPD configuration
|
Single phase |
|
|
Connection to Network
|
By screw terminals: 2.5-25mm² (35mm² rigid) |
|
|
Format
|
Plug-in modular box |
|
|
Plugable
|
Yes |
|
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Ingress Protection rating
|
IP20 (NEMA 2) |
|
|
Failsafe mode
|
Disconnection from AC network |
|
|
Disconnection indicator
|
1 mechanical indicator - Red/Green |
|
|
Spare module(s)
|
MDAC50-150 |
|
|
Remote signaling of disconnection
|
option DAC50S-10-150 : output on changeover contact |
|
|
Dimensions
|
See diagram - 1TE (EN43880) |
|
Standards compliance
|
IEC 61643-11 / EN 61643-11 |
|
|
Certification
|
OVE |
|
|
Environmental standards
|
EU RoHS |
|
Thermal disconnector
|
Internal |
|
|
Installation ground fault breaker
|
Type 'S' or delayed |
|
|
Back-up protection device
|
50 A min. - 125 A max. - Fuses Type gG |
