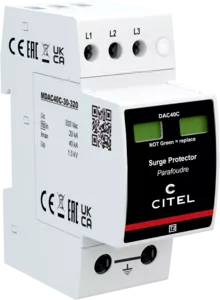

Type 2 AC surge protector - 3-phase

DAC40C-30-320
Part Number 821510313
DAC40C-30-320
  • Compact 3-phase Type 2 surge protector
  • In : 20 kA
  • Imax : 40 kA
  • Common mode/differential
  • Pluggable module
  • Remote signaling option
  • EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Contact Us
The DAC40C Type 2 Compact plugable surge protectors (SPD) are intended to be connected at the TGBT or divisional panel level. Their compact format allows them to be installed in very small spaces. The DAC40C SPDs are available have a discharge capacity of 40 kA, in single-phase or 3-phase configuration and with various voltages in order to protect any type of networks. Based on varistance technology equipped with disconnector and associated indicator, these SPD ensure maximum protection efficiency, flow capacity and reliability.
Select another reference:
SPD type
2
Network
 230/400 V
AC system
 TN
Max. AC operating voltage
Uc 320 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac disconnection
Residual Current
Leakage current to Ground
 Ipe < 1 mA
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 160 kA
Protection mode(s)
 L/PE and N/PE
Protection level N/PE
@ In (8/20µs)
 Up N/PE 1.5 kV
Protection level L/PE
@ In (8/20µs)
 Up L/PE 1.5 kV
Admissible short-circuit current
 Isccr 10 000 A
Network type
 AC
Technology
 MOV
SPD configuration
 3-phase
Connection to Network
 By screw terminals: L/N = 1.5-10mm² (16mm² rigid) or PE = 2.5-25mm² (35mm² rigid)
Format
 Plug-in modular box
Plugable
 Yes
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 2 mechanical indicators - Red/Green
Spare module(s)
 MDAC40C-30-320
Remote signaling of disconnection
 Option DAC40CS-30-320: output on changeover contact
Dimensions
 See diagram - 2TE (EN43880)
Weight
 0.229 kg
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
50 A min. - 125 A max. - Fuses Type gG
