Type 1+2+3 AC surge protector - 3-phase+N

DUT250VG-300/G
Part Number 3414
DUT250VG-300/G
  • Type 1+2+3, 3-phase surge protector
  • Common and differential mode
  • Very compact monobloc enclosure
  • Iimp by pole/total : 25kA
  • Internal disconnection, status indicator
  • Optimized to TOV
  • EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance

The DUT250VG is a compact and heavy duty Type 1+2+3 SPD, designed to be connected at the entrance of the electrical installation, on a 3-phase 230/400 V AC network. The Spark gap + Varistor technology allows a very low level of protection and an absence of following current. The DUT250VG is a 3-phase SPD and provides a common and differential mode protection. This SPD is built in a compact enclosure for DIN rail mounting.

Select another reference:

SPD type
IEC

1+2+3

Network

230/400 V 3-phase+N

AC system

TT-TNS

Nominal line voltage
Un

230/400 Vac

Max. AC operating voltage
Uc

255 Vac

Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT

335 Vac withstand

Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT

440 Vac withstand

Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
UT

1200 V/300A/200 ms withstand

Residual Current
Leakage current to Ground
Ipe

None

Follow current
If

None

Nominal discharge current
15 x 8/20 µs impulses
In

40 kA

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

100 kA

Impulse current by pole
max. withstand 10/350µs by pole
Iimp

25 kA

Total lightning current
max. total withstand @ 10/350µs
Itotal

50 kA

Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc

6 kV

Withstand on overvoltages IEEE C62.41.1

20 kV

Specific energy by pole
max. withstand 10/350 µs
W/R

156 kJ/ohm

Connection mode(s)

L/N and N/PE

Protection mode(s)

Common/Differential mode

Protection level L/N
@ In (8/20µs)
Up L/N

1.5 kV

Protection level N/PE
@ In (8/20µs)
Up N/PE

1.5 kV

Admissible short-circuit current
Isccr

50 000 A

Technology

VG Technology (MOV+GSG)

SPD configuration

3-phase+Neutral

Connection to Network

By screw terminals: 6-35mm² / by bus

Format

Multipolar modular box

Mounting

Symmetrical rail 35 mm (EN 60715)

Housing material

Thermoplastic UL94 V-0

Operating temperature
Tu

-40/+85°C

Protection rating

IP20

Disconnection indicator

3 mechanical indicators by pole

Remote signaling of disconnection

none

Dimensions

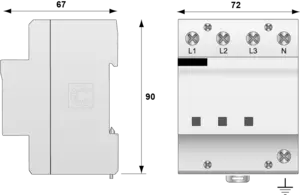

See diagram

Weight

0.62 kg

Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5

Certification
Thermal disconnector

Internal

Installation ground fault breaker

Type 'S' or delayed

Back-up protection device

Fuse assembly: SFD1-25-31S / or Fuses Type gG 315 A
