Type 1+2 AC surge protector - 3-phase

DS133VGS-120
Part Number 571683
DS133VGS-120
  • Discover our latest innovation : the DAC1-13VGS-30-150
  • Type 1 + 2 + 3 AC surge protector
  • In : 20 kA
  • Iimp total : 37.5 kA on 10/350µs impulse
  • Pluggable module
  • Optimized to TOV
  • Remote signaling
  • EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance
Contact Us
The DS130VG is an extreme duty Type 1+2+3 AC surge protector device designed to protect at the entrance of the electrical installation. This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods). The DS130VG is one-pole SPD and can be used in common mode or common and differential mode. DS130VG AC surge protectors are designed to be connected in multi-pole configuration to protect single-phase, 3-phase and 3-phase+Neutral AC networks, sometimes associated with a dedicated N/PE SPD.
Select another reference:
SPD type
1+2+3
Network
 120/208 V 3-phase
AC system
 TNC
Nominal line voltage
 Un 120 Vac
Max. AC operating voltage
Uc 150 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 180 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 230 Vac withstand
Residual Current
Leakage current to Ground
 Ipe None
Operating current
Continious current at Uc
 Ic None
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 50 kA
Impulse current by pole
max. withstand 10/350µs by pole
 Iimp 12.5 kA
Total lightning current
max. total withstand @ 10/350µs
 Itotal 37.5 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc 20 kV
Withstand on overvoltages IEEE C62.41.1
 20 kV
Specific energy by pole
max. withstand 10/350 µs
 W/R 40 kJ/ohm
Connection mode(s)
 L/PE
Protection mode(s)
 Common mode
Residual voltage
@ In (8/20 µs)
 Up-in 0.4 kV
Protection level L/PE
@ In (8/20µs)
 Up L/PE 1.25 kV
Admissible short-circuit current
 Isccr 25 000 A
Technology
 VG Technology (MOV+GSG)
SPD configuration
 3-phase+Neutral
Connection to Network
 By screw terminals: 2.5-25mm² / by bus
Format
 Plug-in modular box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Failsafe mode
 Disconnection from AC network
Disconnection indicator
 1 mechanical indicator by pole
Spare module(s)
 DSM130VG-120
Remote signaling of disconnection
 Output on changeover contact
Dimensions

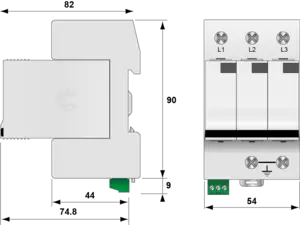

 See diagram
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
 UL Recognized
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
Fuses Type gG - 125 A
