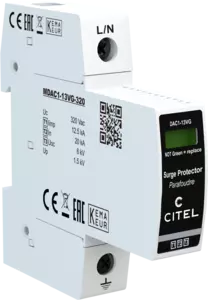

Type 1+2 AC surge protector - 1-pole

DAC1-13VG-10-320
Part Number 821730311
DAC1-13VG-10-320
  • Type 1 + 2 + 3 AC surge protector
  • VG Technology
  • In : 20 kA
  • Iimp : 12.5 kA on 10/350µs impulse
  • No leakage current
  • Pluggable module for each phase
  • Remote signaling (option)
  • Optimized to TOV
  • EN 61643-11, IEC 61643-11 certified
  • UL1449 ed.5 compliance
Contact Us
The DAC1-13VG is an extreme duty pluggable Type 1+2+3 SPD designed to protect AC powerline at the main switchboard of an installation equipped with lightning rod. Equipped with exclusive CITEL’s VG technology, the range achieves a high protection level, guaranteeing a maximum protection efficiency, an absence of follow and leakage currents, a simplification of use (no additional lightning protector required) and a maximum lifetime. The DAC1-13VG surge protectors are especially compact and available in multipolar versions to protect single or 3-phase AC networks, which makes them the best surge protection solution for Type 1 requirements.
Select another reference:
SPD type
IEC

1+2+3
Max. AC operating voltage
Uc

320 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT

335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT

440 Vac withstand
Residual Current
Leakage current to Ground
 Ipe

None
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

50 kA
Impulse current by pole
max. withstand 10/350µs by pole
 Iimp

12.5 kA
Impulse current N/PE
max. withstand 10/350µs
 Iimp N/PE

50 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc

6 kV
Specific energy by pole
max. withstand 10/350 µs
 W/R

40 kJ/ohm
Protection level
@ In (8/20µs) and @ 6 kV (1,2/50 µs)
 Up

1.5 kV
Residual voltage at 5 kA
@ 5 kA (8/20µs)
 Up-5kA

0.9 kV
Admissible short-circuit current
 Isccr

50 000 A
Network type

AC
Technology

VG Technology (MOV+GSG)
SPD configuration

Single phase
Connection to Network

By screw terminals: 2.5-25mm² (35mm² rigid)
Format

Plug-in modular box
Plugable

Yes
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection from AC network
Disconnection indicator

1 mechanical indicator - Red/Green
Spare module(s)

MDAC1-13VG-320
Remote signaling of disconnection

option DAC1-13VGS-10-320: output on changeover contact
Wiring for remote signaling

1.5 mm² max.
Max. Voltage/Current for remote signaling

250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions

See diagram - 1TE (EN43880)
Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification

KEMA
Thermal disconnector

Internal
Installation ground fault breaker

Type 'S' or delayed
Back-up protection device

315 A max. - Fuses Type gG / or SFD1-25S
