Type 1+2+3 AC surge protector
DAC1-13VG-10-150

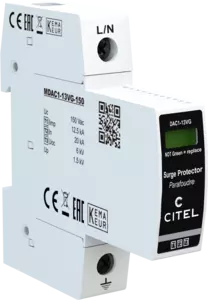

Type 1+2 AC surge protector - 1-pole
DAC1-13VG-10-150
Part Number:
821730111
Type 1 + 2 + 3 AC surge protector
VG Technology
In : 20 kA
Iimp : 12.5 kA on 10/350µs impulse
No leakage current
Pluggable module for each phase
Remote signaling (option)
Optimized to TOV
EN 61643-11, IEC 61643-11 certified
UL1449 ed.4 compliance
Installation Sheet
Contact Us
The DAC1-13VG is an extreme duty pluggable Type 1+2+3 SPD designed to protect AC powerline at the main switchboard of an installation equipped with lightning rod. Equipped with exclusive CITEL’s VG technology, the range achieves an high protection level, guaranteeing a maximum protection efficiency, a absence of follow and leakage currents, a simplification of use (no additional lightning arrester required) and a maximum lifetime. The DAC1-13VG surge protectors are especially compact and available in multipolar versions to protect single or 3-phase AC networks, which makes them the best surge protection solution for Type 1 requirements.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
1+2+3
Max. AC operating voltage
Uc
150 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
UT
180 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
UT
230 Vac withstand
Residual Current
Ipe
None
Follow current
If
None
Nominal discharge current
In
20 kA
Max. discharge current
Imax
50 kA
Impulse current by pole
Iimp
12.5 kA
Withstand on Combination waveform IEC 61643-11
Uoc
6 kV
Specific energy by pole
W/R
40 kJ/ohm
Protection level
Up
1.5 kV
Residuel voltage at 5 kA
Up-5kA
0.4 kV
Admissible short-circuit current
Isccr
50 000 A
Network type
AC
Technology
VG Technology (MOV+GSG)
SPD configuration
1-pole
Connection to Network
By screw terminals: 2.5-25mm² (35mm² rigid)
Format
Plug-in modular box
Plugable
Yes
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator - Red/Green
Spare module(s)
MDAC1-13VG-150
Remote signaling of disconnection
option DAC1-13VGS-10-150 : output on changeover contact
Wiring for remote signaling
1.5 mm² max.
Max. Voltage/Current for remote signaling
250 V / 0.5 A (AC) / 30 V / 3 A (DC)
Dimensions
See diagram - 1TE (EN43880)
Weight
0.145 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.4
Certification
KEMA / EAC
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Fuses
125 A min. - 315 A max. - Fuses Type gG
