AC Power
Type 1+2 AC surge protector

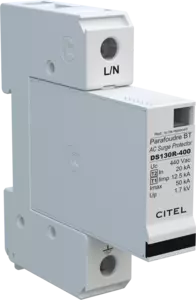

DS131R-400
Type 1+2 AC surge protector - 1-pole
DS131R-400
Part Number:
571401
Type 1 + 2 AC surge protector
In : 20 kA
Iimp : 12.5 kA
Pluggable module for each phase
Remote signaling (option)
EN 61643-11, IEC 61643-11 compliance
Installation Sheet
Contact Us
The DS130R is an extreme duty Type 1+2 designed to protect the entrance of the electrical installation. The DS130R is a one-pole SPD and can be used in common mode or common and differential mode. DS130R AC surge protectors are designed to be connected in multi-pole configuration to protect single-phase, 3-phase and 3-phase+neutral AC networks. This SPD is DIN rail compatible.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
1+2
Network
230/400 V
Nominal line voltage
Un
400 Vac
Max. AC operating voltage
Uc
440 Vac
Temporary Over Voltage (TOV) Charasteristics - 5 sec.
UT
580 Vac withstand
Temporary Over Voltage (TOV) Charasteristics - 120 mn
UT
770 Vac disconnection
Operating current
Ic
< 1 mA
Follow current
If
None
Nominal discharge current
In
20 kA
Max. discharge current
Imax
50 kA
Impulse current by pole
Iimp
12.5 kA
Withstand on overvoltages IEEE C62.41.1
20 kV
Specific energy by pole
W/R
40 kJ/ohm
Connection mode(s)
L/N or N/PE
Protection mode(s)
Common Mode or Differential Mode
Protection level
Up
1.7 kV
Admissible short-circuit current
Isccr
25 000 A
Technology
MOV
SPD configuration
1-pole
Connection to Network
By screw terminals: 2.5-25mm² / by bus
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator
Spare module(s)
DSM130R-400
Remote signaling of disconnection
option DS131RS-400 : output on changeover contact
Dimensions
See diagram
Weight
0.176 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.4
Certification
KEMA / EAC
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Fuses
Fuses Type gG - 125 A
