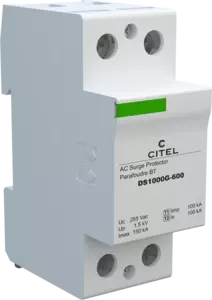

Type 1 N/PE surge protector

DS1000G-600
Part Number 1647
DS1000G-600
  • Type 1 N/PE surge protector
  • Iimp : 100 kA (10/350µs)
  • Imax : 150 kA (8/20µs)
  • Compatible with DS250 and DS150 series
  • IEC 61643-11 compliance
Contact Us
Select another reference:
SPD type
IEC

N/PE
Network

230/400 V
Max. AC operating voltage
Uc

255 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT

335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT

440 Vac withstand
Temporary Over Voltage N/PE (TOV HT)
Without disconnection or with safety disconnection
 UT

1200 V/300A/200 ms withstand
Residual Current
Leakage current to Ground
 Ipe

None
Follow current
If

Yes
Follow current interrupting capability
Ifi

100 A
Nominal discharge current
15 x 8/20 µs impulses
 In

100 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

150 kA
Impulse current by pole
max. withstand 10/350µs by pole
 Iimp

100 kA
Protection level
@ In (8/20µs)
 Up

1.5 kV
Connection to Network

By screw terminals: 6-35mm² / by bus
Format

Monobloc modular box
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Outdoor application

No
Dimensions

See diagram
Weight

0.301 kg
Standards compliance

IEC 61643-11 / EN 61643-11
