RJ45 surge protector for POE++
Part Number: 581545
MJ8-POE-A/SD
- POE++ compatible
- Strong mounting for DIN-rail for vibration enviroments
- Gigabit Ethernet (Cat.5E)
- Shielded enclosure and connectors
- 2 kA discharge capability
- IEC 61643-21, EN 61643-21 compliance

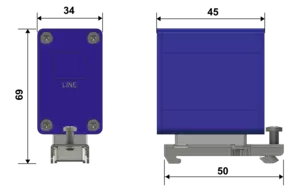

MJ8-POE-A/SD is designed with more stronger mounting DIN-Rail bracket for fitting vibration environment like wind turbines.
This product protect sensitive data-processing equipment connected to a POE++ (Power over Ethernet) network from transient overvoltages, is deployed in signal network applications with data transmission speeds of 100 and 1000 Mbps.
The surge protector is housed in a shielded enclosure with high quality RJ45 shielded jacks.
The transient protection circuit is based on high energy gas discharge tubes (GDT) and a network of fast response silicon avalanche diodes (SAD) to achieve sharp clamping of very large surge events.
Select another reference:
MJ8-POE-A/SD
Datasheet|
Network
|
Gigabit Ethernet (Cat.5E) |
|
|
Nominal line voltage
|
Un | 48 Vdc |
|
Max. DC operating voltage
|
Uc | 60 Vdc |
|
Max. frequency
|
f max. | 250 MHz |
|
Max. data rate
|
10/100/1000 Mbps |
|
|
Insertion loss
|
< 1 dB |
|
|
Max. load current @25°C
|
IL | 2 A |
|
Max. POE power (4PPOE)
|
90 W |
|
|
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
|
In L/PE | 2000 A |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
|
Up | 70 V |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-C (Line/Earth)
|
Up | 70 V |
|
Impulse current
2 x 10/350µs Test - D1 Category
|
Iimp | 500 A |
|
Line/Line Nominal discharge current
C2 Category
|
In L/L | 500 A |
|
Technology
|
GDT+TVS diode |
|
|
SPD configuration
|
8 wires+shielded |
|
|
Connection to Network
|
RJ45 shielded connectors Female input/output |
|
|
Format
|
Metallic box with connectors input/output |
|
|
Mounting
|
Mounting flange,Screw lug, DIN Rail |
|
|
Accessory(s) provided
|
DIN rail adapter, screw, screw nut, earthing plate, countersunk screw, cable shoe |
|
|
Housing material
|
Aluminium |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Failsafe mode
|
Short-circuit - transmision cut-off |
|
|
Disconnection indicator
|
Transmission interrupt - default mode 2 |
|
|
Pinout
|
(1-2)(3-6)(4-5)(7-8) |
|
|
Dimensions
|
See diagram |
|
Standards compliance
|
IEC 61643-21 / EN 61643-21 / IEEE 802-3af/3at/3bt |
|
|
Environmental standards
|
EU RoHS |
