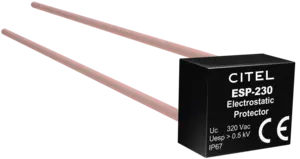

Electrostactic protector for Class II LED lighting system
Part Number: 354913
ESP-230
- Electrostatic protectors
- For Class II Led lighting
- Comply class II safety rules
- Very compact
- Plate mounting
- Wire connection
Select another reference:
ESP-230
Datasheet|
Network
|
220-240 V Single-phase |
|
|
Nominal line voltage
|
Un | 220-240 Vac |
|
Max. AC operating voltage
|
Uc | 320 Vac |
|
Residual Current
Leakage current to Ground
|
Ipe | None |
|
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
|
Uoc | 10 kV / 5 kA |
|
Withstand on overvoltages IEEE C62.41.1
|
10 kV / 10 kA |
|
|
Electrostatic protection level
|
Uesp |
|
|
Electrostatic protection mode
|
N/Functional Earth |
|
Connection to Network
|
2 wires (multistrand) of 1mm² max. |
|
|
Mounting
|
On plate |
|
|
Housing material
|
Thermoplastic UL94 V-0 |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP67 |
|
|
Remote signaling of disconnection
|
No |
|
|
Dimensions
|
See diagram |
|
Certification
|
