Smart SPD / MOV / GDT / TVS Tester

SPT-203
Part Number: 790201

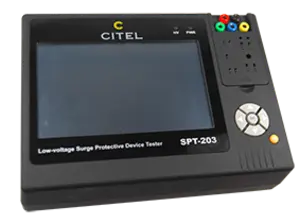

SPT-203
  • 7-inch TFT display with touch-screen
  • Compatible with all CITEL ranges and other brand products
  • Testing the MOV, GDT and TVS components
  • Automatically test and judge CITEL pluggable Surge Protectors
  • Auto test mode and manual test mode
  • Automatically save test data
  • Database management
  • Portable and convenient
Contact Us
The SPT-203 is an easy-to-use device, intuitive and operated with battery it allows to test all the CITEL and external surge protection as well as component: MOV, GDT and TVS. His touchscreen of 7-inch (supplied with his stylus). The test sequence can be performed automatically or manually. During the automatic test sequence, the product is to be selected from a list then is to be connected. Manual verification can also be used for non "CITEL" products if the values ​​of these modules are known. The SPT-203 is delivered in a comfortable and waterproof protective bag including all accessories for all tests.
Select another reference:
Power
 230 V
Voltage
 230 Vac
Voltage measurement error
 +/- 2 % (U < 200 V) +/- 1 % (U > 200 V)
Leakage current measurement error
 +/- 5 %
MOV measurement : 1mA voltage range
 1 to 2000 V
MOV measurement : Leakage current range
 0 µA to 120 µA
GDT measurement : DC spark voltage range
 1 to 2000 V
TVS measurement : Voltage range
 0 to 500 V
Accessory(s) provided
 - Housse de protection - Stylet
Operating and storage temperature
 20°C / 50°C
Dimensions
 See diagram
