Isolating spark gap (ISG)

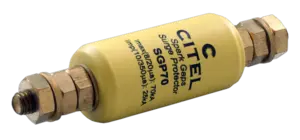

SGP70
Part Number 690103
SGP70
  • Isolating spark gap
  • Indoor application
  • Max. discharge current: 70 kA
  • EN 50164-3, IEC 62561-3 compliance

These spark gap are designed to protect metallic elements, like antennas, poles, pipes, roofing equipment…which are not connected to earth for operating reason, against the risk of flashover during strike on the installation. BFP100 is a specific version of the high energy gas tube P100, featured with isolated sleeve for outdoor application.

Select another reference:

Rated DC withstand voltage
Uw DC

500 V

Rated AC withstand voltage
Uw AC

300 V

DC sparkover voltage (100V/s)

600-900 V

Follow current
If

Yes

Max. discharge current
max. withstand @ 8/20 µs by pole
Imax

70 kA

Impulse current by pole
max. withstand 10/350µs by pole
Iimp

25 kA

Classification following IEC 62561-3

1L

Insulation resistance
IR

1 Gohm

Technology

Gas discharge tube

Connection to Network

Threaded rod M10

Operating temperature
Tu

-40/+85°C

Protection rating

IP54

Outdoor application

No

Dimensions

See diagram

Weight

0.14 kg

Standards compliance

EN 62561-3
