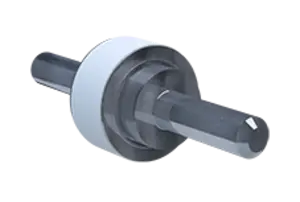

Isolating spark gap (ISG)

BF P100 230/20
Part Number 90231357
BF P100 230/20
  • Isolating spark gap
  • Outdoor application
  • Max. discharge current: 100 kA
  • EN 62561-3 compliance

These spark gap are designed to protect metallic elements, like antennas, poles, pipes, roofing equipment…which are not connected to earth for operating reason, against the risk of flashover during strike on the installation. BFP100 is a specific version of the high energy gas tube P100, featured with isolated sleeve for outdoor application.


Rated DC withstand voltage
Uw DC

184 V

Rated AC withstand voltage
Uw AC

130 V

Max. discharge current
max. withstand @ 8/20 µs 1 time
Imax

100 kA

Impulse current by pole
max. withstand 10/350µs by pole
Iimp

50 kA

Classification following IEC 62561-3

N

Technology

Gas discharge tube

Connection to Network

Wire

Operating temperature
Tu

-40/+85°C

Operating and storage temperature

-40°C / +90°C

Protection rating

IP67

Outdoor application

Yes

Number of units per package

20 units per cardboard

Dimensions

See diagram

Weight

19.4 kg

Standards compliance

EN 62561-3

RohS compliance

Yes
