Type 2 AC surge protector

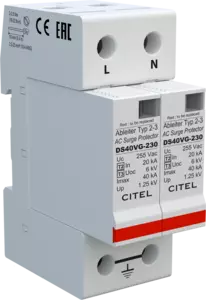

DS42VG-230
Type 2+3 AC surge protector - single-phase
DS42VG-230
Part Number
461551
Discover our latest innovation : the
DAC50VG-20-275
Type 2 + 3 AC Multipolar surge protector
In : 20 kA
Imax total: 80 kA
Pluggable module
Follow and operating current : none
No ageing
Optional remote signaling state
Optimized to TOV
EN 61643-11, IEC 61643-11, UL1449 ed.5 compliance
Datasheet
Installation Sheet
Tender specifications
Contact Us
DS40VG Type 2 +3 AC surge protector, using CITEL's 'VG technology', to completely eliminate the leakAge and operation current while providing maximum discharge capacity and an optimized level of protection. The electric scheme includes a disconnector and its associated indicator .. The DS40VG surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+N AC networks.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
2+3
Network
230 V single-phase
AC system
TN
Nominal line voltage
Un
230 Vac
Max. AC operating voltage
Uc
255 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
440 Vac withstand
Residual Current
Leakage current to Ground
Ipe
None
Operating current
Continious current at Uc
Ic
None
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
40 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
80 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
Uoc
6 kV
Withstand on overvoltages IEEE C62.41.1
20 kV
Connection mode(s)
L/PE and N/PE
Protection mode(s)
Common mode
Residual voltage
@ In (8/20 µs)
Up-in
0.8 kV
Protection level L/PE
@ In (8/20µs)
Up L/PE
1.25 kV
Admissible short-circuit current
Isccr
25 000 A
Technology
VG Technology (MOV+GSG)
SPD configuration
Single phase
Connection to Network
By screw terminals: 2.5-25mm² / by bus
Format
Plug-in modular box
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator by pole
Spare module(s)
DSM40VG-230
Remote signaling of disconnection
option DS42VGS-230 : output on changeover contact
Dimensions
See diagram
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
UL Recognized
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
50 A min. - 125 A max. - Fuses Type gG
×
Description:
Type 2+3 AC surge protector - single-phase
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification:
UL Recognized
Technology:
VG Technology (MOV+GSG)
SPD configuration:
Single phase
Remote signaling of disconnection:
option DS42VGS-230 : output on changeover contact
SPD type :
2+3
Network:
230 V single-phase
AC system:
TN
Max. AC operating voltage :
255 Vac
Residual Current :
None
Max. discharge current :
40 kA
Total Maximum discharge current :
80 kA
Admissible short-circuit current:
25 000 A
CITEL
Reference:
DS42VG-230
Part Number:
461551
Or equivalent
