Type 2 AC surge protector - Single-phase

DAC50VG-20-275
Part Number 821130212

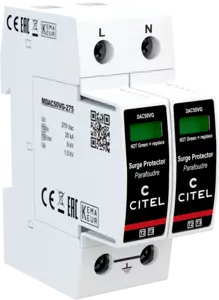

DAC50VG-20-275
  • Type 2 + 3 AC surge protector
  • VG Technology
  • In: 20 kA
  • No leakage current
  • Pluggable module for each phase
  • Remote signaling (option)
  • Optimized to TOV
  • EN 61643-11, IEC 61643-11 certified
  • UL1449 ed.5 compliance
Contact Us
The pluggable surge protectors Type 2+3 DAC50VG, are designed to protect AC powerline at the main switchboard of the installation. Equipped with the exclusive CITEL’s VG technology, the range achieves an improved protection level and a total absence of leakage current, guaranteeing a maximum protection efficiency, a simplification of use (no additional SPD required) and a maximum lifetime. The surge protectors DAC50VG, are available in multipolar version and in several voltages to protect single or 3-phase networks.
Select another reference:
SPD type
IEC

2+3
Network

230 V single-phase
AC system

TN
Max. AC operating voltage
Uc

275 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT

335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT

440 Vac withstand
Residual Current
Leakage current to Ground
 Ipe

None
Follow current
If

None
Nominal discharge current
15 x 8/20 µs impulses
 In

20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

50 kA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total

100 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc

6 kV
Connection mode(s)

L/PE and N/PE
Protection level N/PE
@ In (8/20µs)
 Up N/PE

1.5 kV
Protection level L/PE
@ In (8/20µs)
 Up L/PE

1.5 kV
Protection level N/PE at 5 kA
@ 5 kA (8/20µs)
 Up-5kA

0.7 kV
Residual voltage L/PE at 5 kA
@ 5 kA (8/20µs)
 Up-5kA

0.7 kV
Admissible short-circuit current
 Isccr

50 000 A
Network type

AC
Technology

VG Technology (MOV+GSG)
SPD configuration

Single phase
Connection to Network

By screw terminals: 2.5-25mm² (35mm² rigid)
Format

Plug-in modular box
Plugable

Yes
Mounting

Symmetrical rail 35 mm (EN 60715)
Housing material

Thermoplastic UL94 V-0
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Disconnection from AC network
Disconnection indicator

1 mechanical indicator by pole - Red/Green
Spare module(s)

MDAC50VG-275
Remote signaling of disconnection

option DAC50VGS-20-275 : output on changeover contact
Dimensions

See diagram - 2TE (EN43880)
Weight

0.198 kg
Standards compliance

IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification

KEMA
Thermal disconnector

Internal
Installation ground fault breaker

Type 'S' or delayed
Back-up protection device

50 A min. - 160 A max. - Fuses Type gG
