Type 1+2+3 AC surge protector - 3-phase+N

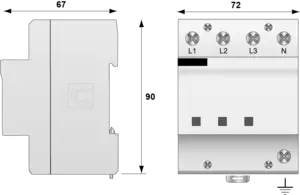

DUT250VG-300/TNS
Part Number 3597
DUT250VG-300/TNS
  • Type 1+2+3, 3-phase surge protector
  • Common and differential mode
  • Very compact monobloc enclosure
  • Iimp by pole/total : 25kA
  • Internal disconnection, status indicator
  • Optimized to TOV
  • EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance
Contact Us
The DUT250VG is a compact and heavy duty Type 1+2+3 SPD, designed to be connected at the entrance of the electrical installation, on a 3-phase 230/400 V AC network. The Spark gap + Varistor technology allows a very low level of protection and an absence of following current. The DUT250VG is a 3-phase SPD and provides a common and differential mode protection. This SPD is built in a compact enclosure for DIN rail mounting.
SPD type
1+2+3
Network
 230/400 V 3-phase+N
AC system
 TNS
Nominal line voltage
 Un 230/400 Vac
Max. AC operating voltage
Uc 255 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
 UT 335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
 UT 440 Vac withstand
Residual Current
Leakage current to Ground
 Ipe None
Follow current
If None
Nominal discharge current
15 x 8/20 µs impulses
 In 40 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax 100 kA
Impulse current by pole
max. withstand 10/350µs by pole
 Iimp 25 kA
Total lightning current
max. total withstand @ 10/350µs
 Itotal 50 kA
Withstand on Combination waveform IEC 61643-11
Class III test: 1.2/50µs - 8/20µs
 Uoc 6 kV
Withstand on overvoltages IEEE C62.41.1
 20 kV
Specific energy by pole
max. withstand 10/350 µs
 W/R 156 kJ/ohm
Connection mode(s)
 L/N and L/PE
Protection mode(s)
 Common/Differential mode
Protection level L/N
@ In (8/20µs)
 Up L/N 1.5 kV
Protection level N/PE
@ In (8/20µs)
 Up N/PE 1.5 kV
Admissible short-circuit current
 Isccr 50 000 A
Technology
 VG Technology (MOV+GSG)
SPD configuration
 3-phase+Neutral
Connection to Network
 By screw terminals: 6-35mm² / by bus
Format
 Multipolar modular box
Mounting
 Symmetrical rail 35 mm (EN 60715)
Housing material
 Thermoplastic UL94 V-0
Operating temperature
 Tu -40/+85°C
Protection rating
 IP20
Disconnection indicator
 3 mechanical indicators by pole
Remote signaling of disconnection
 none
Dimensions
 See diagram
Weight
 0.63 kg
Standards compliance
 IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
Thermal disconnector
 Internal
Installation ground fault breaker
 Type 'S' or delayed
Back-up protection device
Fuse assembly: SFD1-25-31S / or Fuses Type gG 315 A
