AC Power
Type 1+2 AC surge protector

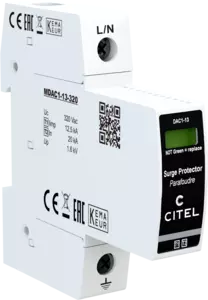

DAC1-13-10-320
Type 1+2 AC surge protector - 1-pole
DAC1-13-10-320
Part Number
821710311
Type 1 + 2 AC surge protector
In : 20 kA
Iimp : 12.5 kA
Pluggable module for each phase
Remote signaling (option)
EN 61643-11, IEC 61643-11 certified
UL1449 ed.5 compliance
Datasheet
CITEL_Certif_EU_DAC1-13.pdf
Installation Sheet
Tender specifications
Contact Us
The DAC1-13 is an extreme duty Type 1+2 pluggable SPD designed to protect AC powerline at the main switchboard of an installation equipped with lightning rod. The technology ‘Multi-varistor” allows a very high discharge current capability in small dimensions and the best possible behavior to the AC network (no follow current). In the light of their high discharge capability, the DAC1-13 surge protectors are especially compact and are available in multipolar versions to protect single or 3-phase AC networks.
Select another reference:
Electrical Properties
Mechanical Properties
Norms
Deconnector
Schemas
SPD type
1+2
Max. AC operating voltage
Uc
320 Vac
Temporary Over Voltage (TOV) Characteristics - 5 sec.
Without disconnection
UT
335 Vac withstand
Temporary Over Voltage (TOV) Characteristics - 120 mn
Without disconnection or with safety disconnection
UT
440 Vac disconnection
Residual Current
Leakage current to Ground
Ipe
< 1 mA
Follow current
If
None
Nominal discharge current
15 x 8/20 µs impulses
In
20 kA
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax
50 kA
Impulse current by pole
max. withstand 10/350µs by pole
Iimp
12.5 kA
Specific energy by pole
max. withstand 10/350 µs
W/R
40 kJ/ohm
Protection level
@ In (8/20µs)
Up
1.6 kV
Residual voltage at 5 kA
@ 5 kA (8/20µs)
Up-5kA
1.2 kV
Admissible short-circuit current
Isccr
50 000 A
Network type
AC
Technology
VG Technology (MOV+GSG)
SPD configuration
Single phase
Connection to Network
By screw terminals: 2.5-25mm² (35mm² rigid)
Format
Plug-in modular box
Plugable
Yes
Mounting
Symmetrical rail 35 mm (EN 60715)
Housing material
Thermoplastic UL94 V-0
Operating temperature
Tu
-40/+85°C
Protection rating
IP20
Failsafe mode
Disconnection from AC network
Disconnection indicator
1 mechanical indicator - Red/Green
Spare module(s)
MDAC1-13-320
Remote signaling of disconnection
option DAC1-13S-10-320: output on changeover contact
Dimensions
See diagram - 1TE (EN43880)
Weight
0.190 kg
Standards compliance
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification
KEMA
Thermal disconnector
Internal
Installation ground fault breaker
Type 'S' or delayed
Back-up protection device
315 A max. - Fuses Type gG / or SFD1-25S
×
Description:
Type 1+2 AC surge protector - 1-pole
Standards compliance:
IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Certification:
KEMA / EAC
Technology:
VG Technology (MOV+GSG)
SPD configuration:
Single phase
Remote signaling of disconnection:
option DAC1-13S-10-320: output on changeover contact
SPD type :
1+2
Max. AC operating voltage :
320 Vac
Residual Current :
< 1 mA
Max. discharge current :
50 kA
Impulse current by pole :
12.5 kA
Protection level :
1.6 kV
Admissible short-circuit current:
50 000 A
