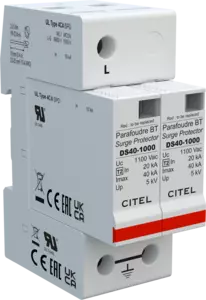

Type 2 AC surge protector - one-phase - pluggable
DS41-1000
Part Number: 462901
- Type 2 AC surge protector
- In : 20 kA
- Imax : 40 kA
- Pluggable module for each phase
- Remote signaling option
- NF EN 61643-11, CEI 61643-11 compliance
- UL1449 ed.4
Installation Sheet
used mainly for primary protection of single and 3- phase networks at the main electrical panel. They provide common-mode or common and differential mode. This SPD is based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards.
The DS40 surge protectors are designed to be used in a multipolar configuration to protect single-phase, 3-phase or 3-phase+Neutral AC networks.They are sometimes associated with dedicated N/PE surge protector based on gas tube technology.
Select another reference:
- DS41-1000
- DS41-120
- DS41-230
- DS41-280
- DS41-320
- DS41-385
- DS41-400
- DS41-600
- DS41-690
- DS42-120
- DS42-120/G
- DS42-230
- DS42-230/G
- DS42-280
- DS42-280/G
- DS42-320
- DS42-320/G
- DS42-385/G
- DS42-400
- DS43-120
- DS43-230
- DS43-280
- DS43-320
- DS43-385
- DS43-400
- DS43-480
- DS44-120
- DS44-120/G
- DS44-230
- DS44-230/G
- DS44-230/G/DE
- DS44-280
- DS44-280/G
- DS44-320
- DS44-320/G
- DS44-385
- DS44-385/G
- DS44-400
- DS44-480
| SPD type following IEC test |
2 |
| Network |
1000 Vac |
| Nominal line voltage |
1000 Vac |
| Max. AC operating voltage L-N | 1100 Vac |
| Temporary Over Voltage (TOV) Charasteristics - 5 sec. without disconnection |
1400 Vac withstand |
| Temporary Over Voltage (TOV) Charasteristics - 120 mn without disconnection or with safety disconnection |
1840 Vac disconnection |
| Residual Current Leakage current to Ground |
< 0.5 mA |
| Operating current Continious current at Uc |
0.5 mA |
| Follow current |
None |
| Nominal discharge current 15 x 8/20 µs impulses |
20 kA |
| Max. discharge current max. withstand @ 8/20 µs by pole |
40 kA |
| Admissible short-circuit current | 25000 A |
| Connection mode(s) |
L/PE |
| Protection mode(s) |
Common mode |
| Protection level @ In (8/20µs) |
5 kV |
| Technology | MOV |
| SPD configuration | 1-pole |
| Connection to Network | By screw terminals: 2.5-25 mm² / by bus |
| Format | Plug-in modular box |
| Mounting | Symmetrical rail 35 mm (EN60715) |
| Housing material | Thermoplastic UL94-V0 |
| Operating temperature | -40/+85°C |
| Protection rating | IP20 |
| Failsafe behavior | Disconnection |
| Disconnection indicator | 1 mechanical indicator |
| Spare module(s) |
DSM40-1000 |
| Remote signaling of disconnection | option DS41S-1000 : output on changeover contact |
| Dimensions |
See diagram |
| Certification | EAC |
| Standards compliance | IEC 61643-11 / EN 61643-11 |
| Fuses |
Fuses type gG - 50 A |
| Thermal disconnector | Internal |
| Installation ground fault breaker | Type 'S' or delayed |
